Lab Equipment

Lab Equipment

Benchtop Lab Glass Reactor - photograph and schematic

In addition to range of glassware, we also supply Benchtop Lab Glass Reactors. This includes small vessels (single, double or triple walled) from 0.5 L to 5 L. In addition we have all the glass components you are likely to need such as condensers, receivers, addition funnels, reflux dividers etc.

Our Benchtop Lab Glass Reactors include easy accessibility through open support frame, manufactured from German made Borosilicate glass and a minimal dead space with many other standard and optional features.

Key Specifications

  • Reactor Volume: 0.5 L to 5 L
  • Reactor Type: Single Wall, Double Walled & Triple Walled
  • Operating Pressure: Full Vacuum to 0.5 bar (g)
  • Operating Temperature: -50°C to +180°C
  • Gear Motor with Inbuilt Digital Indicator Speed Range 40 to 400 RPM
  • Thermal Shock Resistance: (Δt): 60°C for Triple Walled and 110°C for Double Walled Reactors.
  • Standard GL Threads for Inlet and Outlet. (Inlet and Outlet can be supplied with beaded process pipe.)

Unit Reference Table

Unit Cat. Ref. Addition Funnel (mL) Condenser Length L×B×H
BLR 0.5 (100DN)200300250×250×900
BLR1 (100DN)250300250×250×900
BLR 2 (100DN)500300250×250×1350
BLR 3 (150DN)500300250×250×1450
BLR 5 (150DN)500400350×350×1450

SALIENT FEATURES

  • Reactors equipped with the flush bottom valve of the special type to ensure leak-free sealing over entire temperature range.
  • All reactors are designed to keep L/ID Ratio within 1.5(max) for performance and easy scale up. L/ID ratio may be changed on request.
  • All These Reactors are designed GMP.
  • Manufacture from German Raw Material.
  • Ideal for benchtop fume hoods.(SS/MS)
  • Stirrer with suitable seal (Mechanical, Stuffing Box, Magnetic Seal, High Vacuum Stuffing Box).
  • Skid mounted and quick release coupling for ease of installation and dismantling.
  • Overhead stirrer motor with built-in speed controller and display
  • Interchangeable Stirrers (Anchor/Propeller/Turbine) as per your suitability

OPTIONAL

  • Vacuum Pump
  • Digital Temp Indicator
  • Chiller
  • Heating/Cooling System
  • Hot Water/Oil circulator
  • Mobility Support

TECHNICAL INFORMATION

Laboratory works require apparatus made in a Borosilicate 3.3 expansion glass which offers maximum inertness to widest range of chemical substances, withstand thermal shock, high temperature without deforming and resilient enough to withstand the normal laboratory handling, washing and sterilizing processes.

Borosilicate glass represents unmatched standardized glass for construction of Laboratory Glasswares. Its steadily growing use is due to many advantages over conventional materials.

  • Outstanding corrosion resistance
  • Smooth pore and surface.
  • Transparency
  • Catalytic inertness
  • No effect on taste and odour
  • Physiological inertness

Borosilicate glass is chosen for its unique chemical and physical properties. Borosilicate glass can be considered as being composed of Oxides. Silica (SiO2), Boron oxide (B2O3) and Phosphorous Pentaoxide (P2O5) are chief glass form Oxides. Soda (Na2O), Lime (CaO), Alumina (Al2O3), Potash (K2O), Magnesia (MgO) and Lead Oxide (PbO) are the principle modifiers/fluxes.

CHEMICAL COMPOSITION

The composition of borosilicate glass used has following approximate composition:

SiO2 – 80.6 %   B2O3 – 12.5%   Na2O – 4.5 %   Al2O3 – 2.2 %

RESISTANCE TO CHEMICALS

Borosilicate glass is inert to almost all materials except hydrofluoric acid (HF), phosphoric acid (H3PO4) and hot strong caustic solutions. Of these, Hydrofluoric acid has the most serious effect, even when it is present in PPM (parts per million) in solutions, Whereas phosphoric acid and caustic solutions cause no problems when cold but at elevated temperature corrosion occurs. In case of caustic solutions upto 30% concentration can be handled safely at ambient temperature.

Under actual operating conditions, the effect of turbulence, and traces of other chemicals in the solution may increase or decrease the rate of attack. Thus, corrosion by caustic solutions can not be predefined.

THERMAL PROPERTIES

Linear coefficient of thermal expansion of borosilicate glass over the temperature 0–300°C is 3.3 × 10-6/°C. This is very low when compared with other glasses and metals. That is why borosilicate glass is often called low expansion borosilicate glass.

SPECIFIC HEAT

Specific heat between 28°C and 300°C is average to be 0.233 Kcal/kg°C.

THERMAL CONDUCTIVITY

Thermal conductivity is 1.0 Kcal/hr.m.°C over the permissible operating temperature range.

ANNEALING

Annealing of glass is the process where the glass is heated and kept for a defined period of time to relieve internal stresses. Careful cooling under controlled conditions is essential to ensure that no stresses are reintroduced by chilling/cooling.

MECHANICAL PROPERTIES

The lack of ductility of glass prevents the equalization of stresses at local irregularities or flaws and the breakage strength varies considerably about a mean value. This latter is found to occur at a tensile strength of about 700 kg/cm2.

In order to allow for the spread of breaking stress, a large factor of safety is applied when determining the wall thickness requirement to allow operation up to specified limit of working pressure.

OPTICAL PROPERTIES

Borosilicate glass shows no appreciable absorption in the visible region of spectrum and therefore appears clear and colorless. In photo chemical process the transparency of ultra violet is of particular importance. It follows from the transmittance of material in UV region that photochemical reactions such as chlorination & sulphochlorination can be performed in it.

Single Wall Vessel

Sr.DescriptionMOCUnit SizeCAT REF
1Jacketed Vessel - 0.5Duran0.5 LVZ0.5/J
2Jacketed Vessel - 1.0 LDuran1.0 LVZ1/J
3Jacketed Vessel - 2.0 LDuran2.0 LVZ2/J
4Jacketed Vessel - 3.0 LDuran3.0 LVZ3/J
5Jacketed Vessel - 5.0 LDuran5.0 LVZ5/J

Flexi - Double Wall Jacketed Vessel

Sr.DescriptionMOCUnit SizeCAT REF
1Jacketed Vessel - 0.5Duran0.5 LVZD0.5/J
2Jacketed Vessel - 1.0 LDuran1.0 LVZD1/J
3Jacketed Vessel - 2.0 LDuran2.0 LVZD2/J
4Jacketed Vessel - 3.0 LDuran3.0 LVZD3/J
5Jacketed Vessel - 5.0 LDuran5.0 LVZD5/J

Flexi - Triple Wall Jacketed Vessel

Sr.DescriptionMOCUnit SizeCAT REF
1Jacketed Vessel - 0.5Duran0.5 LVZT0.5/J
2Jacketed Vessel - 1.0 LDuran1.0 LVZT1/J
3Jacketed Vessel - 2.0 LDuran2.0 LVZT2/J
4Jacketed Vessel - 3.0 LDuran3.0 LVZT3/J
5Jacketed Vessel - 5.0 LDuran5.0 LVZT5/J

Vessel Cover

Sr.DescriptionMOCUnit SizeCAT REF
1Vessel Cover - 4" C -B24, S-B24 × B24 at 10°, S-B19 × B19 at 10°Duran0.5 L - 2.0 LVZA4/J
2Vessel Cover - 6", C -B34, S-B24 × B24 at 10°, S-B19 × B19 at 10°Duran3.0 L - 5.0 LVZA6/J

Coupling & Gasket

Sr.DescriptionMOCUnit SizeCAT REF
1Quick Release Coupling 4"SS3040.5 L - 2.0 LQCT4/J
2Quick Release Coupling 6"SS3043.0 L - 5.0 LQCT6/J
3SS 304 Coupling 1" with SS 304 Nuts & BoltsSS3040.5 L - 2.0 LCT1/SS
4PTFE 'O' Ring for 1"PTFE3.0 L - 5.0 LTR1
5SS 304 Coupling 1.5" with SS 304 Nuts & BoltsSS3043.0 L - 5.0 LCT1.5/SS
6PTFE O Ring for 1.5"PTFE0.5 L - 5.0 LTR1.5

Valve

Sr.DescriptionMOCUnit SizeCAT REF
1Flush Bottom Valve - 1"Duran0.5 L - 2.0 LBAL1/J
2Flush Bottom Valve - 1.5"Duran3.0 L - 5.0 LBAL1.5/J

PTFE Stirrer (Blade)

Sr.DescriptionMOCUnit SizeCAT REF
1SR - A (Blade/Propeller/Turbine)400 mm0.5 L - 2.0 LSTB4
2SR - B (Blade/Propeller/Turbine/Anchor)550 mm3.0 L - 5.0 LSTB5

Sealing

Sr.DescriptionMOCUnit SizeCAT REF
1High Vacuum Stuffing BoxPTFE0.5 L - 2.0 LHSB24
2High Vacuum Stuffing BoxPTFE0.3 L - 5.0 LHSB34

Stirrer Drive

Sr.DescriptionMOCUnit SizeCAT REF
1Lab Stirrer Drive Speed 40 to 400 RPM with dig. IndicatorMS0.5 L - 5.0 LLSD

Sensor

Sr.DescriptionMOCUnit SizeCAT REF
1Temperature Indicator sensor -40°C to 250°CMS0.5 L - 5.0 LLTI

Glass Accessories

Sr.DescriptionMOCUnit SizeCAT REF
1Double Coil Condenser with Cone B24, socket B24, 300 mm longBorosilicate 3.30.5 L - 3.0 LHES24
2Double Coil Condenser with Cone B24, socket B24, 400 mm longBorosilicate 3.35.0 LHEC4S
3250 ml Funnel, Additional/Dropping, with socket B19/24 cylindrical, St bore PTFE stop cock, graduated pressure equalizingBorosilicate 3.30.5 L - 1.0 LAEF25
4500 ml Funnel, Additional/Dropping, with socket B24/25 cylindrical, St bore PTFE stop cock, graduated pressure equalizingBorosilicate 3.32.0 L - 5.0 LAEF50
5Thermometer Pocket B19Borosilicate 3.30.5 LTP0.5
6Thermometer Pocket B19Borosilicate 3.31.0 LTP1
7Thermometer Pocket B19Borosilicate 3.32.0 LTP2
8Thermometer Pocket B24Borosilicate 3.33.0 LTP3
9Thermometer Pocket B24Borosilicate 3.35.0 LTP5

Scaffolding / Stand

Sr.DescriptionMOCUnit SizeCAT REF
1SS 304 Scaffolding / Stand for 0.5 L to 2 LSS 3040.5 L - 2.0 LTBG/SS/0.5-2/J
2SS 304 Scaffolding / Stand for 3 L to 5 LSS 3043.0 L - 5.0 LTBG/SS/3-5/J

Myth
It is often considered that, glass articles are easy to manufacture. Melt the glass and cast.

Fact
At Surya, we manufacture glass articles and equipment from glass tubes of various sizes and thicknesses. The glass tubes are heated to the temperature of 800–1200°C. Like Blacksmith, shaped it like Potter with precision like goldsmith.

Beakers Griffin, low form, with spout, graduated

2111 BEAKERS GRIFFIN, LOW FORM, WITH SPOUT, GRADUATED

CAT. REF. CAP. ML. APPROX. O.D. MM APPROX. HEIGHT MM PACKING I/C/M
2111/3250001702700/3/9
2111/35100002203220/1/6
2111/40200002904000/1/2

Laboratory bottles and containers in glass for storage and dispensing of chemicals and solutions.

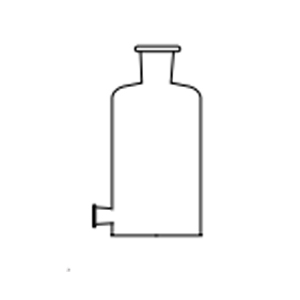

2351 BOTTLES, ASPIRATOR WITH OUTLET FOR STOPPER

2351 Aspirator bottle with outlet for stopper
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX NECK I.D MM APPROX OUTLET I.D. MM QTY PER CASE
2351/32500019032044281
2351/351000022042054281
2351/402000030053554281

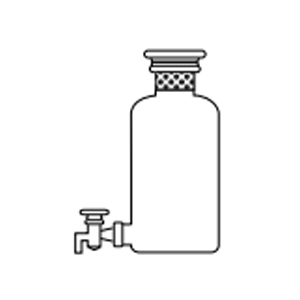

2356 BOTTLES, ASPIRATOR, WITH INTERCHANGEABLE STOPPER AND STOPCOCK

2356 Aspirator bottle with interchangeable stopper and stopcock
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX NECK I.D MM APPROX OUTLET I.D. MM QTY PER CASE
2356/325 00019032045/4029/321
2356/351000022042055/4429/321
2356/402000030053555/4429/321

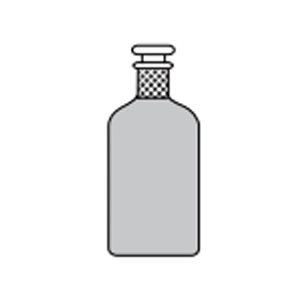

2610 BOTTLES, REAGENT, AMBER, NARROW MOUTH WITH INTERCHANGEABLE FLAT HEAD STOPPER

2610 Reagent bottle amber narrow mouth with interchangeable flat head stopper
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM SIZE OF INTERCHANGEABLE STOPPER PACKING I/C/M
2610/32500019032045/401/0/9
2610/351000022042055/440/1/2
2610/402000030053555/440/1/2

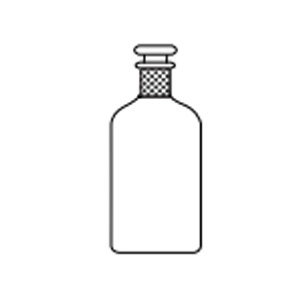

2611 BOTTLES, REAGENT, PLAIN NARROW MOUTH, WITH INTERCHANGEABLE FLAT HEAD STOPPER

2611 Reagent bottle plain narrow mouth with interchangeable flat head stopper
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM SIZE OF INTERCHANGEABLE STOPPER PACKING I/C/M
2611/32500019032045/401/0/9
2611/351000022042055/440/1/2
2611/402000030053555/440/1/2

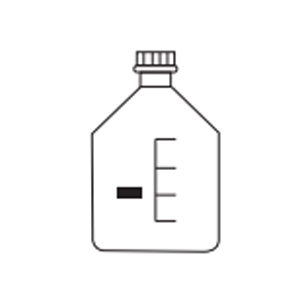

2612 BOTTLES, REAGENT, SCREW CAP, PLAIN -WITH GL45 (WITH CLASS-A CERTIFICATE)

2612 Reagent bottle screw cap plain GL45
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX. NECK I.D. MM PACKING I/C/M
2612/32/455000190320441/2/12
2612/35/4510000220420540/1/2
2612/40/4520000300535540/1/2
2612/45/4550000540/1/1

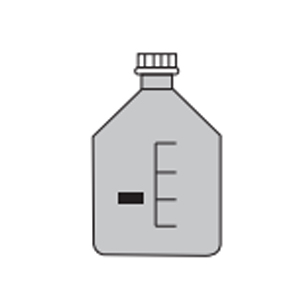

2613 BOTTLES, REAGENT, SCREW CAP, AMBER -WITH GL45 (WITH CLASS-A CERTIFICATE)

2613 Reagent bottle screw cap amber GL45
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX. NECK I.D. MM PACKING I/C/M
2613/32/455000190320441/2/12
2613/35/4510000220420540/1/2
2613/40/4520000300535540/1/2
2613/45/4550000540/1/1

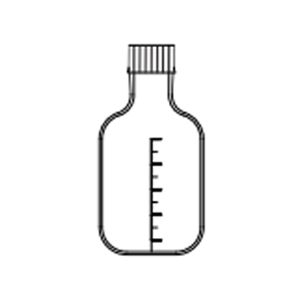

2614 BOTTLES, REAGENT, SCREW CAP, PLAIN -WITH GL80 (WITH CLASS-A CERTIFICATE)

2614 Reagent bottle screw cap plain GL80
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX. NECK I.D. MM PACKING I/C/M
2614/32/805000190380441/2/12
2614/35/8010000220465540/1/2
2614/40/8020000300580540/1/2
2614/45/8050000400600540/1/1

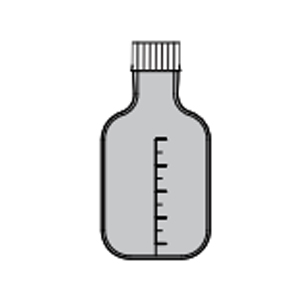

2615 BOTTLES, REAGENT, SCREW CAP, AMBER -WITH GL80 (WITH CLASS-A CERTIFICATE)

2615 Reagent bottle screw cap amber GL80
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX. NECK I.D. MM PACKING I/C/M
2615/32/805000190380441/2/12
2615/35/8010000220465540/1/2
2615/40/8020000300580540/1/2
2615/45/8050000400600540/1/1

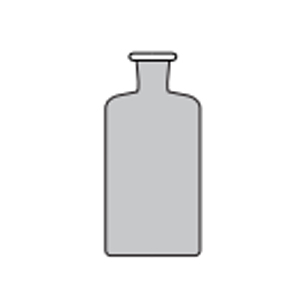

2690 BOTTLES, SOLUTION, AMBER, TOOLED NECK

2690 Solution bottle amber tooled neck
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX. NECK I.D. MM PACKING I/C/M
2690/325000190320441/2/12
2690/3510000220420540/1/2
2690/4020000300535540/1/2

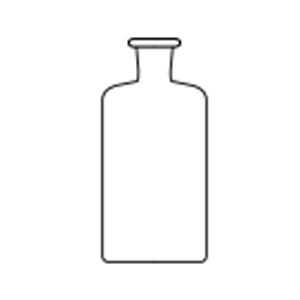

2696 BOTTLES, SOLUTION, PLAIN TOOLED NECK

2696 Solution bottle plain tooled neck
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM APPROX. NECK I.D. MM PACKING I/C/M
2696/325000190320441/2/12
2696/3510000220420540/1/2
2696/4020000300535540/1/2

Myth
Glass is Fragile and shall be avoided.

Fact
Glass being fragile cannot be eliminated from the use and is mainly used for its characteristics like (Purity, Non-Corrosive, non-reactivity, transparency, rich look, appearance, etc.).

Fragility of glass depends on physical impact force.
Physical Impact force is dependent on the handling and a little care can nullify it.

Tensile strength of glass is weak. This can be enhanced by increasing the thickness of the item and thermal/chemical toughening process.

Glass has magnificent compressive strength. If a glass is given compressive pressure in between Mo metallic flanges, under extreme pressure, the glass will remain intact and the metallic flange or the studs may break due to repulsive force. (Request for Demo).

Glass desiccators for storing moisture-sensitive materials and maintaining dry conditions.

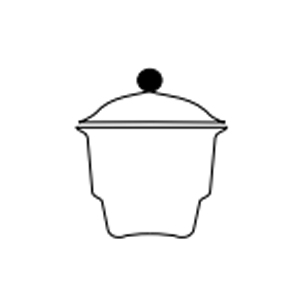

4192 DESICCATORS WITH COVER, KNOB TOP

4192 Desiccators with cover, knob top
Cat.Ref. SIZE MM GROUND FLANGE APPROX. I.D. MM PACKING I/C/M
4192/01100mm1050/1/-
4192/02150mm1541/2/12
4192/03200mm2020/1/6
4192/04250mm260-/1/-
4192/05300mm300-/1/-
4192/06500mm500-/1/-

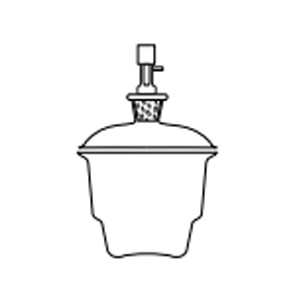

4220 DESICCATORS VACUUM, WITH TABULATED COVER, STOPPER, WITH PTFE SPINDLE

4220 Desiccators vacuum with tabulated cover, stopper, PTFE spindle
Cat.Ref. SIZE MM GROUND FLANGE APPROX. I.D. MM INTER-CHANGABLE JOINT SIZE PACKING I/C/M
4220/01100mm10529/320/1/-
4220/02150mm15429/321/2/12
4220/03200mm20229/320/1/6
4220/04250mm26029/32-/1/-
4220/05300mm30029/32-/1/-
4220/06500mm50034/35-/1/-

Vacuum type Desiccators, when ground surface is cleaned & greased, will hold a vacuum of 500 mm of Mercury (Hg) over a 24 hours period.

Micro filtration assemblies for sterile filtration and particle removal in laboratory applications.

Micro Filter Holder Assembly with ground glass joint - funnel, filter base, clamp and Buchner flask

4399 MICRO FILTER HOLDER ASSEMBLY, WITH GROUND GLASS JOINT

Cat.Ref. COMPONENTS Qty Per Case
4399/47 Funnel for 47 size filter base with sintered disc for 34/35 size socket in the stem for 47 size filter spring clamp, 47 size 1000 ml. buchner flask with 34/35 cone 1

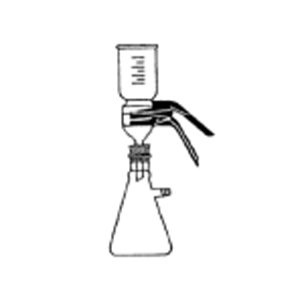

4396 MICRO FILTER HOLDER ASSEMBLY, WITH RUBBER CORK

Micro Filter Holder Assembly with rubber cork - graduated funnel, filter base, spring clamp and Buchner flask
Cat.Ref. COMPONENTS Qty Per Case
4396/13 Funnel for 13 & 25 size filter base with sintered disc for 13 size filter spring clamp, 13 & 25 size 100 ml. buchner flask with cork 1
4396/25 Funnel for 13 & 25 size filter base with sintered disc for 25 size filter spring clamp, 13 & 25 size 100 ml. buchner flask with cork 1
4396/47 Funnel for 47 size filter base with sintered disc for 47 size filter spring clamp, 47 size 1000 ml. buchner flask with cork —

4951 COMPLETE EXTRACTION APPARATUS

4951 Complete Extraction Apparatus - round-bottom flask, extractor body and condenser
Cat.Ref. CAP. ML. FLASH SIZE ML QTY. PER CASE
4951/29200050001
4951/325000100001
4951/3510000200001

5091 FLASKS, ERLENMEYER, GRADUATED, CONICAL, NARROW MOUTH

5091 Flasks, Erlenmeyer, Graduated, Conical, Narrow Mouth
Cat.Ref. CAP. ML APPROX. O.D. MM. APPROX. HEIGHT MM APPROX. O.D. NECK MM PACKING I/C/M
5091/325000220377500/2/4
5091/3510000280450600/1/2
5091/4020000–––0/1/1

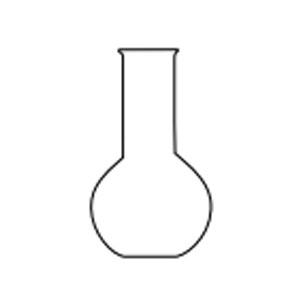

5171 FLASKS, BOILING, FLORENCE, FLAT BOTTOM

5171 Flasks, Boiling, Florence, Flat Bottom
Cat.Ref. CAP. ML. APPROX. O.D. MM APPROX. HEIGHT MM APPROX. NECK O.D. MM PACKING I/C/M
5171/325000223340601/0/9
5171/3510000285400600/2/4
5171/4020000350505700/1/4

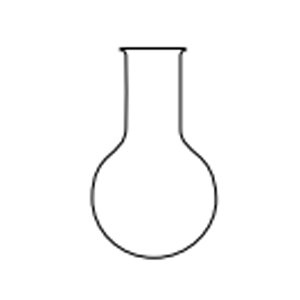

5371 FLASKS, BOILING, ROUND BOTTOM

5371 Flasks, Boiling, Round Bottom
Cat.Ref. CAP. ML. APPROX. O.D. MM APPROX. HEIGHT MM APPROX. NECK O.D. MM PACKING I/C/M
5371/325000223350601/0/9
5371/3510000285420600/2/4
5371/4020000350505700/1/4

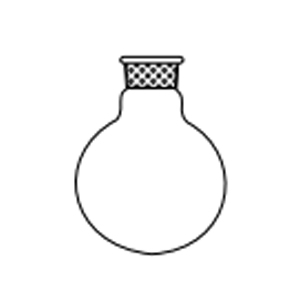

5491 FLASKS, BOILING, ROUND BOTTOM, SHORT NECK WITH INTERCHANGEABLE JOINT

5491 Flasks, Boiling, Round Bottom, Short Neck with Interchangeable Joint
Cat.Ref. CAP ML INTERCHANGEABLE JOINT APPROX O.D. MM APPROX HEIGHT MM PACKING I/C/M
5491/32500034/352233001/0/9
5491/351000055/442853850/2/4
5491/402000055/443504350/1/4

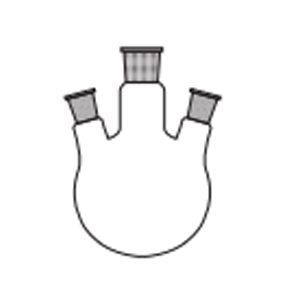

5494 FLASKS, ROUND BOTTOM, THREE NECKS, CENTRE NECK AND TWO ANGLED SIDE NECKS WITH INTERCHANGEABLE JOINT

5494 Flasks, Round Bottom, Three Necks, Centre and Two Angled Side Necks with Interchangeable Joint
Cat.Ref. CAP. ML INTERCHANGEABLE JOINT SIZE APPROX. HEIGHT MM Qty. Per Case
CENTRE NECK SIDE NECK SIDE NECK
5494/32500034/3524/2924/293501
5494/351000034/3524/2924/294201
5494/402000055/4424/2924/295001

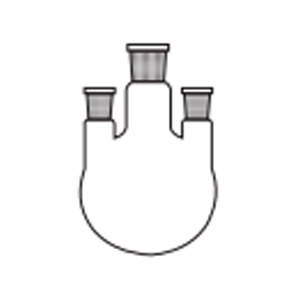

5495 FLASKS, ROUND BOTTOM, THREE NECKS, CENTRE NECK AND TWO PARALLEL SIDE NECKS WITH INTERCHANGEABLE JOINT

5495 Flasks, Round Bottom, Three Necks, Centre and Two Parallel Side Necks with Interchangeable Joint
Cat.Ref. CAP. ML INTERCHANGEABLE JOINT SIZE APPROX. HEIGHT MM Qty. Per Case
CENTRE NECK SIDE NECK SIDE NECK
5495/32500034/3524/2924/293501
5495/351000034/3524/2924/294201
5495/402000055/4424/2924/295001

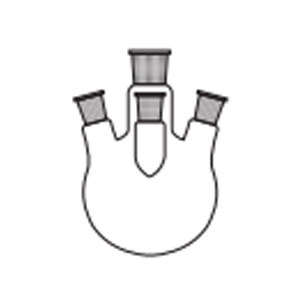

5496 FLASKS, ROUND BOTTOM, FOUR NECKS, CENTRE NECK AND THREE ANGLED SIDE NECKS WITH INTERCHANGEABLE JOINT

5496 Flasks, Round Bottom, Four Necks, Centre and Three Angled Side Necks with Interchangeable Joint
Cat.Ref. CAP. ML INTERCHANGEABLE JOINT SIZE APPROX. HEIGHT MM Qty. Per Case
CENTRE NECK SIDE NECK SIDE NECK SIDE NECK
5496/32500034/3524/2924/2924/293501
5496/351000034/3524/2924/2924/294201
5496/402000055/4424/2924/2924/295001

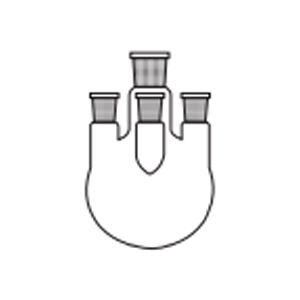

5497 FLASKS, ROUND BOTTOM, FOUR NECKS, CENTRE NECK AND THREE PARALLEL SIDE NECKS WITH INTERCHANGEABLE JOINT

5497 Flasks, Round Bottom, Four Necks, Centre and Three Parallel Side Necks with Interchangeable Joint
Cat.Ref. CAP. ML INTERCHANGEABLE JOINT SIZE APPROX. HEIGHT MM Qty. Per Case
CENTRE NECK SIDE NECK SIDE NECK SIDE NECK
5497/32500034/3524/2924/2924/293501
5497/351000034/3524/2924/2924/294201
5497/402000055/4424/2924/2924/295001

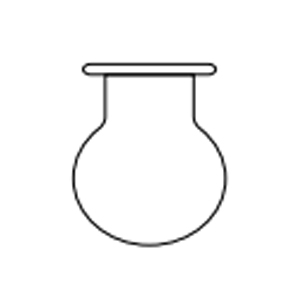

5441 (VESSELS) REACTION, WIDE MOUTH, FLAT FLANGE 100mm I.D., 150 mm O.D.

5441 Reaction vessels, wide mouth, flat flange
Cat.Ref. CAP. ML. APPROX. HEIGHT MM PACKING I/C/M
5441/3250002601/0/9
5441/35100003200/2/4
5441/40200004000/1/4

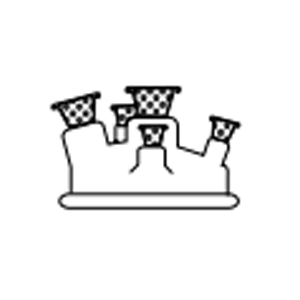

5442 LIDS, FOR FLASKS REACTION CAT. NO.5441. FLAT FLANGE AND INTERCHANGEABLE JOINT

5442 Lids for reaction flasks, flat flange and interchangeable joint
Cat.Ref. INTERCHANGEABLE JOINT SIZE SIDE 5° SIDE 10° SIDE 15° QTY. PER CASE
CENTER PARALLEL
5442/192419/2619/2624/2919/26–2
5442/191419/2614/2314/2314/2329/322
5442/291429/3214/2314/2314/2329/322
5442/193419/2619/2619/2619/2634/352
5442/243424/2919/2619/2619/2634/352

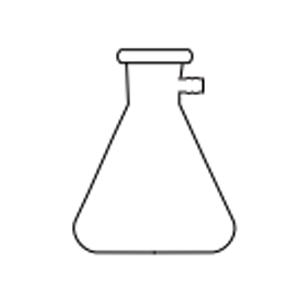

6451 FLASKS, FILTERING, HEAVY WALL, BOLT NECK WITH TUBULATION

6451 Flasks, Filtering, Heavy Wall, Bolt Neck with Tubulation
Cat.Ref. CAP. ML APPROX. O.D. MM. APPROX. HEIGHT MM PACKING I/C/M
6451/3250002374500/1/2
6451/35*100002205000/1/2
6451/40"200003005600/1/2

Myth
Glass is just for windows

Fact
There is so much more to glass with endless possibilities. There are different types of glass that have various uses in all fields from Technology to Architecture.

While windows are still a primary application for glass in your home, scientists are currently manipulating glass at the molecular level in the hopes of increasing the total capabilities of glass products. In addition, expanding glass' capabilities helps to solve some of the world's toughest issues.

Scientists have experimented with glass that makes high-speed communication possible through optical fibre.

Innovations in glass products also help turn solar energy into electricity and enable thinner, lighter, and more durable display devices.

Surya Scientific is a leading Industrial and Laboratory Glassware manufacturing company in India. Since inception, our moto has been to go beyond possible to delight customer through innovation.

Under vacuum environment, the filtration flask are prone to collapse and thus we are proud to introduce new design of Filter Flask. These filtration flasks are manufactured as per Japanese design and are more suitable and stronger as compared to existing conventional/traditional available designs.

Application

  • Filtering solutions
  • Removing solvent under reduced pressure.
  • Provides buffer/trap to secure pump or vacuum line.

Salient Features

  • Thick wall of the flask provides it the strength to withstand the pressure difference while holding a vacuum inside.
  • Side arm/nozzle to connect to a vacuum pump or aspirator, to create/lower vacuum/pressure inside the flask.
  • Made from Borosilicate glass 3.3, to provide visibility, strength, heating and chemical resistance.

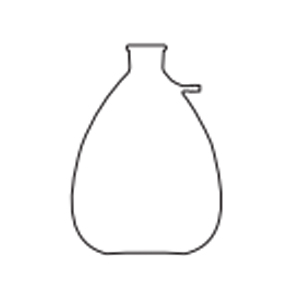

6451 / J JAPAN FLASKS, FILTERING, HEAVY WALL

6451 / J Japan Flasks, Filtering, Heavy Wall
Cat.Ref. CAP. ML. APPROX O.D. MM APPROX HEIGHT MM PACKING I/C/M
6451/29/J20001702400/6/24
6451/30/J30002002950/1/6
6451/32/J50002403400/1/2
6451/35/J100003004200/1/2
6451/40/J200003505300/1/16

Laboratory funnels including filter funnels, dropping funnels, and separatory funnels in glass.

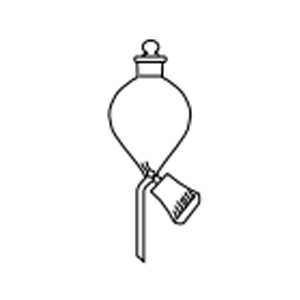

7451 FUNNELS, SEPARATING, GLOBE SHAPE, WITH ROTOFLOW STOPCOCK WITH HOLLOW INTERCHANGEABLE STOPPER

7451 Funnels, Separating, Globe Shape, with Rotoflow Stopcock with Hollow Interchangeable Stopper
Cat.Ref. CAP. ML I / C STOPPER SIZE PACKING I/C/M
7451/32500034/25-/1/-
7451/351000034/25-/1/-
7451/402000045/40-/1/-

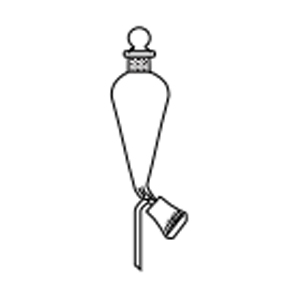

7513 FUNNELS, SEPARATING, PEAR SHAPE, WITH ROTOFLOW STOPCOCK HOLLOW INTERCHANGEABLE STOPPER

7513 Funnels, Separating, Pear Shape, with Rotoflow Stopcock Hollow Interchangeable Stopper
Cat.Ref. CAP. ML I / C STOPPER SIZE PACKING I/C/M
7513/32500034/25-/1/-
7513/351000034/25-/1/-
7513/402000045/40-/1/-

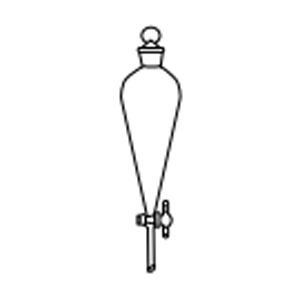

7514 FUNNELS SEPARATING, PEAR SHAPE, FITTED WITH PTFE KEY STOPCOCK WITH INTERCHANGEABLE HOLLOW STOPPER

7514 Funnels Separating, Pear Shape, fitted with PTFE Key Stopcock with Interchangeable Hollow Stopper
Cat.Ref. CAP. ML I / C STOPPER SIZE PACKING I/C/M
7514/32500034/25-/1/-
7514/351000034/25-/1/-
7514/402000045/40-/1/-

Glass jars and bottles for sample storage, reagents, and general laboratory use.

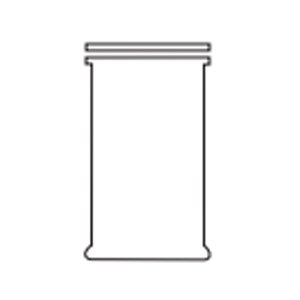

7900 MUSEUM JARS

7900 Museum Jars
Cat.Ref. O.D. X HEIGHT MM QTY. PER CASE
7900/180 x 2004
7900/280 x 2504
7900/3100 x 2004
7900/4100 x 2504
7900/5100 x 3004
7900/6150 x 2002
7900/7150 x 2502
7900/8150 x 3002
7900/9225 x 2501
7900/10225 x 3001
7900/11225 x 3751
7900/12300 x 3001
7900/13300 x 3751
7900/14300 x 4501

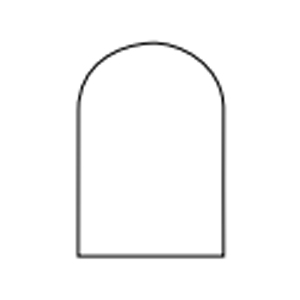

7997 JARS, BELL, ROUND BOTTOM, EDGE GROUND

7997 Jars, Bell, Round Bottom, Edge Ground
Cat.Ref. APPROX CAP. LTR APPROX HEIGHT MM APPROX O.D. MM QTY. PER CASE
7997/39194503151
7997/38174003151
7997/3363502301

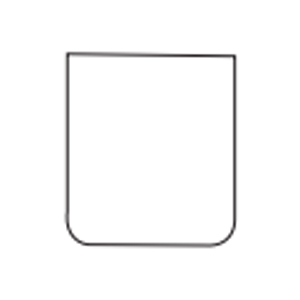

7016 JARS, CYLINDRICAL, FERMENTATION

7016 Jars, Cylindrical, Fermentation
Cat.Ref. APPROX CAP. LTR APPROX HEIGHT MM APPROX O.D. MM QTY. PER CASE
7016/35103202301
7016/37144552301
